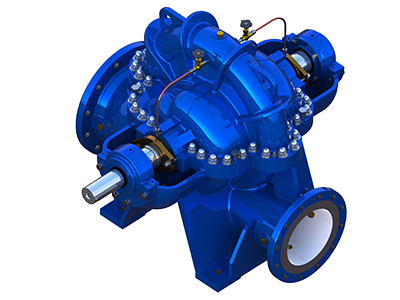

The Fairbanks Nijhuis’ split case pump is the right choice for a wide range of applications. This pump configuration exceeds the characteristics of two smaller single suction pumps or one larger single suction pump, offering superior performance in terms of efficiency, maintenance and footprint.

Multimedia

Vertical Split Case Pump – VGT

Features

  • Reduced energy consumption
  • Less environmental impact
  • Low operating costs
  • Extended service life and durability
  • Low vibration and noise levels
  • Upgrading of existing pumps
  • Low footprint
  • Balanced loading
  • Locked-in-place rotating assembly
  • Can be used with multiple types of drives

functional description

The environmental-friendly split case pump has low maintenance requirements and can be produced in a number of materials according to the specific application requirements. Split case pumps are available for a wide range of flow rates and pressure heads. Available in horizontal and vertical execution and one or two-stage.

CONFIGURATION

Horizontal:

The selection of shaft seals depends on the operating conditions and composition of the medium being pumped.

  • Standard soft packing
  • Various mechanical seals, which can be balanced as well as externally flushed, including dry-run protection
  • Various options of tandem lip seals


Vertical

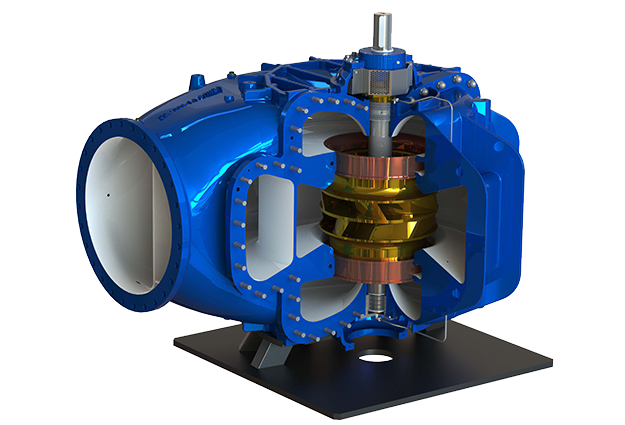

Our split case pump is also available in a vertical configuration, which decreases the footprint when space is limited. In addition, due to the elevated motor location, the electronic parts stay dry when the water level in the pump room rises.

  • Lower bearing of a maintenance-free sleeve type
  • Available in various materials


BEARINGS

The bearings are easily accessible for inspection and maintenance. As standard the pump has grease lubricated anti-friction bearings. The lubricant choice depends on the operating conditions.

Option for horizontal configurations:
Oil lubricated anti-friction bearings

Option for vertical configurations:
Lower sleeve bearing in various materials, lubricated by pumped medium, with or without external flushing

MATERIAL OPTIONS
To meet the demands of multiple applications, which requires that pumps or parts are constructed in a specified material, the Fairbanks Nijhuis split case pumps are available in a wide range of materials:

  • Cast iron
  • Ductile cast iron
  • Bronze
  • Nickel aluminum bronze
  • Stainless steel
  • (Super) duplex stainless steel
  • Other materials on request


APPLICATIONS

  • Potable water
  • Cooling water
  • Air conditioning
  • Shipbuilding
  • Irrigation
  • Drainage
  • Desalination
  • Firefighting systems
  • Oil & Gas

specifications

On request higher capacities and heads can be realized.
  HGT   Venus Venus V  HGTF   HGTFH
 Configuration Horizontal  Horizontal   Vertical Horizontal  Horizontal
 Execution Double suction  Double suction   Double suction  Double suction Double suction
 Capacity 90 -13,000m3/h or 396 - 57,237 USGPM   136-16,180m3/hr or 1408-63,360 USGPM 320-14,400m3/hr or1,408-63,360 USGPM   600-3,636 m3/hr or 2,640-15,998 USGPM 450-4,000 mlc or 1,980-17,600 USGPM
 Head 5 -250
mlc  or (16 - 820 feet)
9-200 mlc (29-656 feet)  8-145 mlc (26-475 feet)   55-253mlc (180-829 feet) 12-180 mlc
(39-590 feet)


  VGT(F)  HG2   5800, 2800, 1800 5900, 1900
 Configuration  Vertical Horizontal   Horizontal/
Vertical
 Horizontal
 Execution Double suction  Double suction   Single suction Double suction
 Capacity  300-3,500 m3/hr
or 1,320-15,400 USGPM
40-1188m3/h or
176-5227 USGPM

22 to 17,034 m3/hr(100 to 75,000 GPM)


13 to 545 m3/hr (60 to 2,400 GPM)


 Head 5-130 mlc (16-426 feet) 35-183 mlc
(114-600 feet)
 20 to 700 feet (6 to 213m)

60 to 1000 feet (18 to 305 m)
