Fairbanks Nijhuis

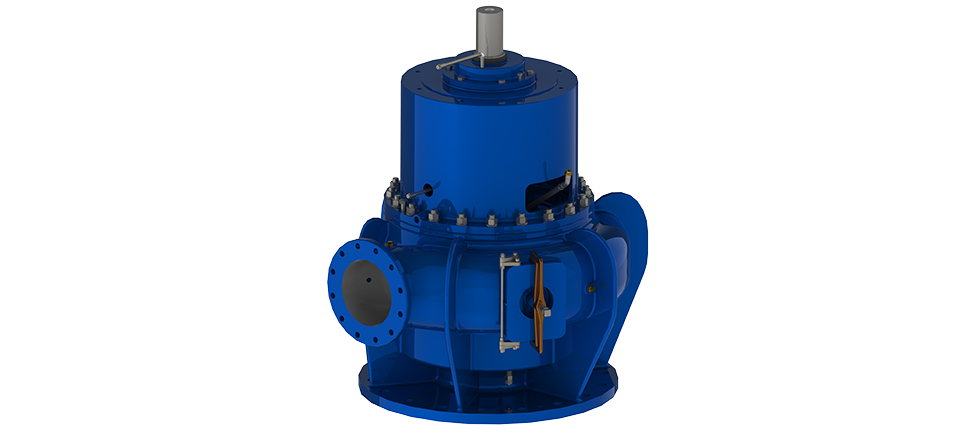

Solids Handling Pumps

The Fairbanks Nijhuis solids handling pumps have an international reputation for the handling capacity of solids, slurries, sludge, pulp, trash, sewage, and grit, combined with high efficiencies. These pumps are designed to pass solids, trash, and long stringy materials. They come with a single, double or triple blade screw impeller having wide impeller passages which provide an extremely smooth resistance-free path for solids containing fibers.

Features

  •  High efficiency
  •  Resistance-free path for solids
  •  Shaft deflection reduced to a minimum
  •  Back pull out design for pump inspection
  •  Access hole for impeller inspection
  •  Available in different materials
  •  Steep Q-H Curve
  •  Low NPSH characteristics
  •  Flat non-overloading power curve
  •  Reduced maintenance and downtime costs
  •  Smooth, quiet and trouble free installation


functional description

Applications

  • raw sewage
  • viscous liquids
  • waste water
  • sewage effluent
  • sludge


SRW- SRWc- SRWV series

This pump has three available configurations horizontal (SRW), horizontal close coupled (SRWc) and vertical (SRWV). The screw impeller centrifugal pumps (SRW) with single blade screw type impeller are ideal for pumping raw sewage which contains stringy fibrous material and for pumping sludge up to 10% dry solid content. Available in: Cast iron and Ductile iron; Niresist; Bronze and Aluminium Bronze; St. Steel and Duplex St. Steel.

RW-RWV-ERW-ERWV serie
For raw sewage we have some alternative types available with single blade (ERW and ERWV) and double blade impeller (RW and RWV). For larger capacities you need our triple blade impeller Mixed Flow Pump  (HMFR or VMFR). Available in: Cast iron and Ductile iron; Niresist; Bronze and Aluminium Bronze; St. Steel and Duplex St. Steel.

VTSH series
This pump eliminates the need for additional dry-sump, suction piping, dehumidification and sump pumps. It reduces initial constructions costs with 40-70%, compared to conventional wet-pit/dry-pit designs. The pump is ideally suited for the new trench-type self-cleaning wet well design, non-clogging and highly efficient. The design allows entire drive system and controls to be located above the flood plane. Constructed of cast iron bowls and impellers and a stainless steel pump shaft.

5420/2420 – 5410/2410 series
This pump is available in horizontal and vertical configuration. It has a lengthened shaft life, reduced maintenance and downtime costs. Installation is smooth, quiet and trouble-free. Constructed of cast iron volutes and impellers and a carbon steel pump shaft.

5730M/5730W - 5730WD series
These pumps and motors are UL Listed for operation in Class 1, Division 1, Group C and D hazardous locations, and feature explosion-proof construction. The impellers are single-suction, mixed-flow design with large passageways. Constructed of cast iron volutes, cast iron or bronze impellers and a carbon steel pump shaft. 5 year prorated warranty. The pump of our 5730WD series runs continuously non-submerged. This model also has a unique, self-cleaning rotating flow-control disc that prevents solids from entering and accumulating in mechanical seal area and cooling water jacket.

5430WD/ 2430WD series
The unit runs continuously non-submerged Pumps and motors are UL Listed for operation in Class I, Division 1, Group C and D hazardous locations, and feature explosion-proof construction. Constructed of cast iron volutes, cast iron or bronze impellers and a carbon steel pump shaft.5 year prorated warranty.

5430M&W/ 2430M&W series
Pumps, motors and pull-up systems are UL Listed for operation in Class I, Division 1, Group C and D hazardous locations, and feature explosion-proof construction Impellers are single-suction, mixed-flow design with large passageways. Constructed out of cast iron volutes, cast iron or bronze impellers and stainless steel shaft. Reliable, clog resistant, high performance. 5 year prorated warranty.

specifications

SRW   SRWV  ERW ERWV RW RWV HMFR  VMFR
Configuration  Horizontal  Vertical Horizontal  Vertical   Horizontal Vertical  Horizontal  Vertical
Impeller  Screw channel Screw channel  Single blade  Single blade   Double blade Double blade  Triple blade   Triple blade
 Capacity 300-2400 m3/hr  300-2400 m3/hr   50-600 m3/hr   50-600 m3/hr   355-3000 m3/h  355-3000 m3/h   1800-12000 m3/hr   1800-12000 m3/hr
 Head 45 mlc  45 mlc  40 mlc   40 mlc  60 mlc 60 mlc  37 mlc   37 ml


5430 VTSH  5410/5420

5430/5440
2410
/2420/2440
5710
/5720/5740
5730WD/m/W 5430WD

/2430WD
5430M&W

/2430M&W
Configuration Vertical Biltogether  Vertical Conventional Dry-Pit  Conventional Dry-Pit Conventional Dry-Pit Submersible Dry-pit Submersible Dry-pit Submersible dry-pit
Impeller Multivane or bladeless Multivane or bladeless Multivane Angle Flow Angle Flow Multivane or bladeless Multivane or bladeless
Capacity 15 to 8,300 GPM (3 to 1,855 m3/hr)

5000 to 30,000 GPM (1,135 to 6,813 m3/hr)

15 to 75,000 GPM (3 to 17,034 m3/hr)

15 to 75,000 GPM (3 to 17,034 m3/hr)

500 to 25,000 GPM (113 to 5,678 m3/hr)

500 to 25,000 GPM (113 to 5,678 m3/hr)

15 to 8,000 GPM (3 to 1,817 m3/hr)

15 to 8,000 GPM (3 to 1,817 m3/hr)

Head 5 to 300 ft (1.5 to 91m)

10 to 110 feet (3 to 33.5 m)

5 to 300 feet (1.5 to 91 m)

5 to 300 feet (1.5 to 91 m)

5 to 110 feet (1.5 to 33 m)

5 to 110 feet (1.5 to 33 m)

5 to 290 feet (1.5 to 88 m)

5 to 290 feet (1.5 to 88 m)

Discharge size


2" to 10" in Diameter



8"-42"

2" to 42" (51 to 1,067 mm) in diameter

2" to 42" (51 to 1,067 mm) in diameter

10" to 24" (254 to 609 mm) in diameter

10" to 24" (254 to 609 mm) in diameter



10" to 24" (254 to 609 mm) in diameter

 2" to 10" (51 to 254 mm)in diameter
